SKU: PNWP-CON-HOR
MPN: PNW-CON-HOR
Product Description

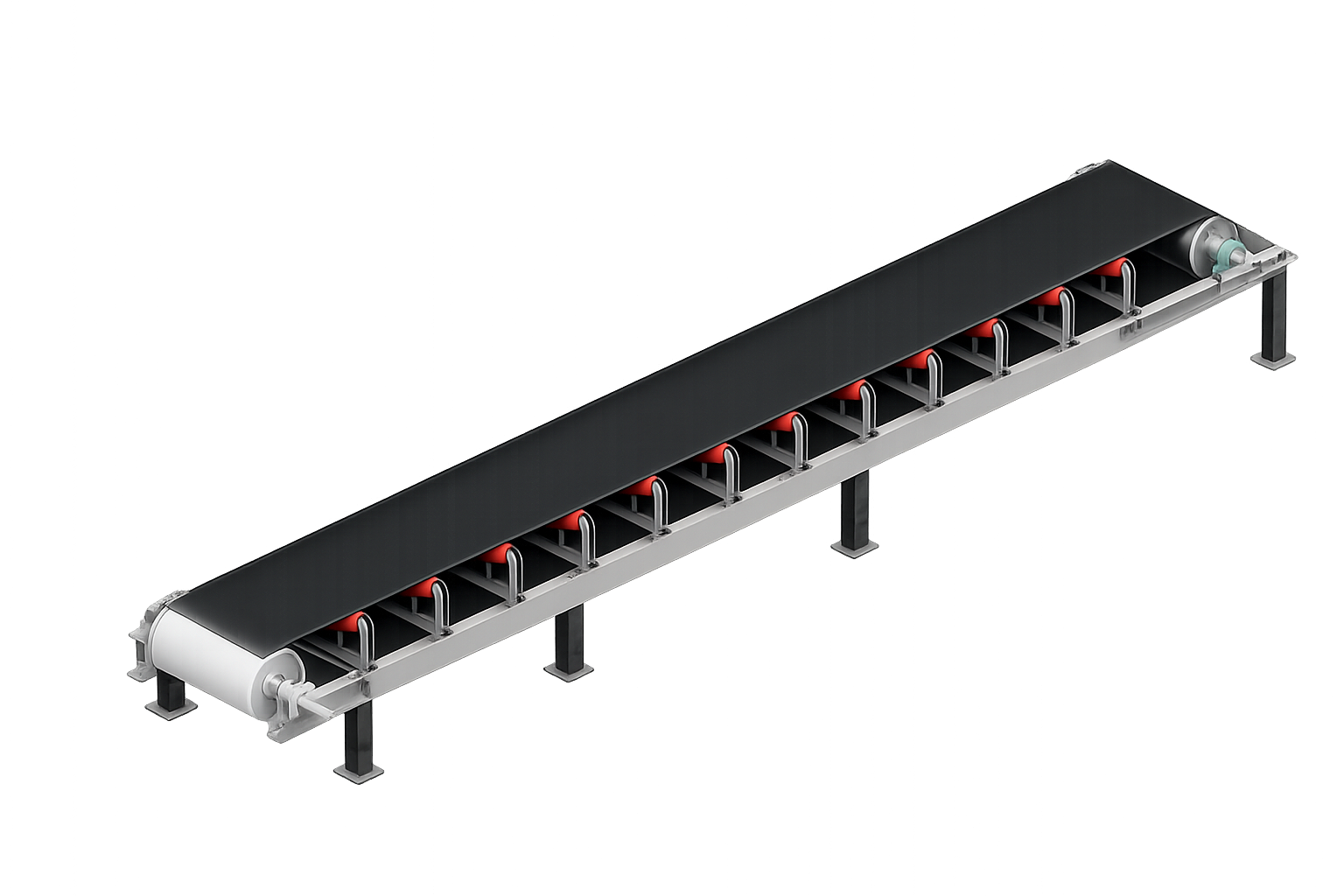

Heavy-duty horizontal belt conveyor designed for concrete batch plants and industrial material handling applications. Engineered for efficient transfer of aggregate, sand, gravel, and other bulk materials, this conveyor provides reliable material movement while maintaining consistent flow throughout the production process.
Constructed using C8 structural channel side rails with L3 x 3 x 1/4 structural angle cross bracing, the conveyor is designed for long service life, dependable performance, and minimal maintenance in demanding industrial environments. Utilizing industry-standard CEMA conveyor components, the system offers excellent durability, serviceability, and replacement part availability.
Available Configuration Options
• Belt Widths: 18", 24", 30", and 36"
• Lengths: 10', 20', 40', and Custom
• 20° Troughing Idlers Available
• 35° Troughing Idlers Available
• Multiple Drive Configurations Available
• Multiple Discharge Arrangements Available
• Custom Plant Integration Configurations Available
Specifications
Application: Aggregate and Bulk Material Transfer
Construction: C8 Structural Channel Side Rails with L3 x 3 x 1/4 Structural Angle Cross Bracing
Configuration: Horizontal Belt Conveyor
Troughing Idlers: Standard CEMA Rollers, 20° or 35° Troughing Configuration
Return Idlers: 4" Diameter Return Rollers
Drive Package: 10 HP Heavy-Duty Conveyor Motor (Voltage Specified by Customer)
Drive Assembly: Gearbox and Torque Arm Assembly Included
Pulley Package: Head and Tail Pulley Package with Take-Ups Included
Finish: Industrial Protective Coating
Installation Type: Field-Assembled Structural System
Compatible With
• Concrete Batch Plants
• Ready-Mix Concrete Operations
• Aggregate Storage Systems
• Sand and Gravel Processing Facilities
• Industrial Material Handling Systems
Features
• Heavy-duty C8 channel construction
• L3 x 3 x 1/4 structural angle cross bracing
• Standard CEMA conveyor roller components
• Available with 20° or 35° troughing idler configurations
• Standard 4" diameter return idlers
• Includes 10 HP heavy-duty conveyor motor
• Customer-specified motor voltage available
• Includes drive and gearbox assembly with torque arm
• Includes head and tail pulley package with take-ups
• Reliable material transfer performance
• Optimized material flow characteristics
• Designed for continuous industrial operation
• Simplified field assembly and installation
• Engineered for outdoor industrial environments
• Long service life design
• Customizable to suit specific plant requirements
