SKU: PNWP-CON-UPS
MPN: PNW-CON-UPS
Product Description

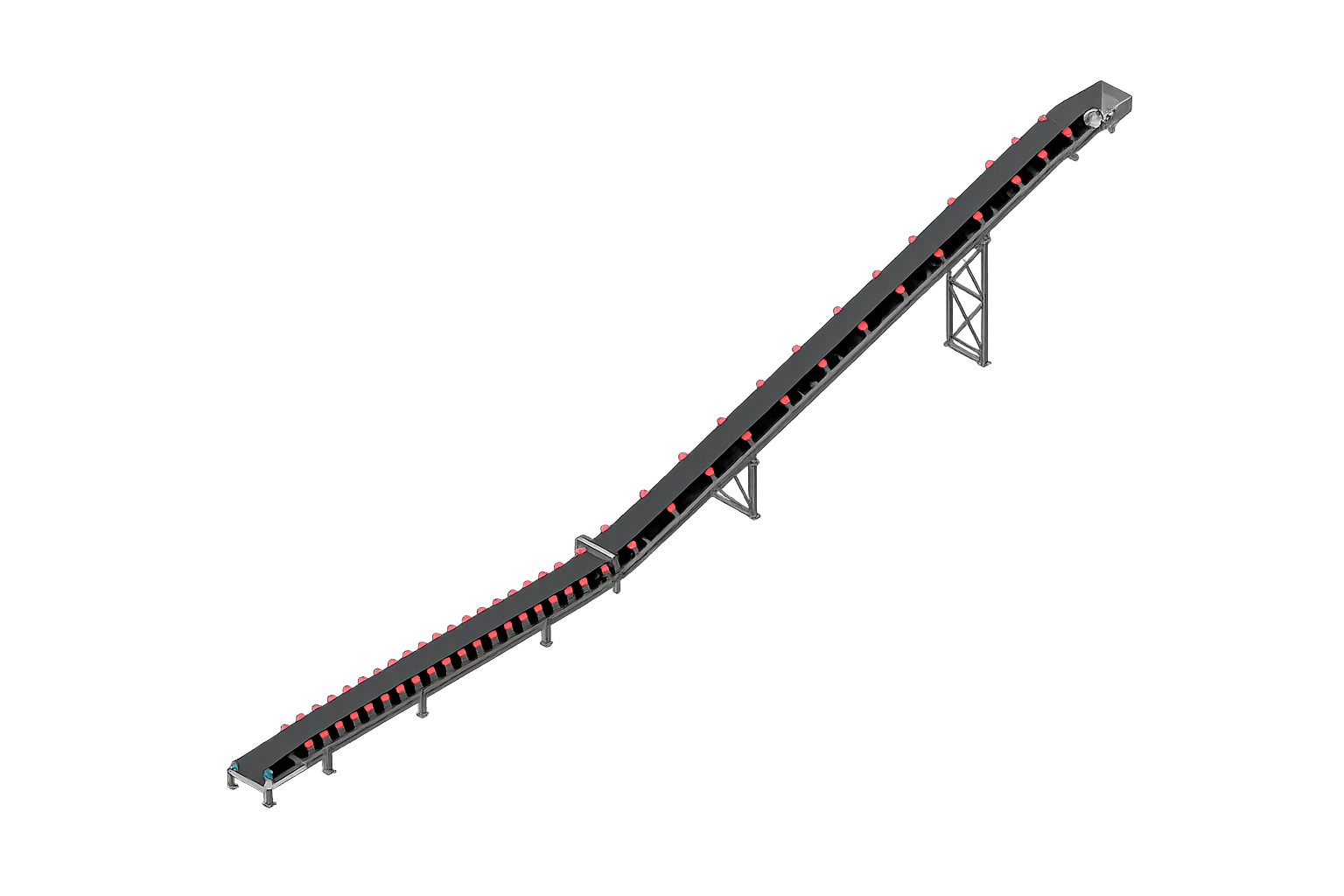

Heavy-duty upswing belt conveyor designed for concrete batch plants and industrial material handling applications. Engineered to elevate aggregate, sand, gravel, and other bulk materials to batching equipment, storage systems, and production processes. Each conveyor is custom designed to meet specific plant layouts, discharge heights, and operational requirements. Standard equipment includes two bent conveyor supports and a belt hold-down bracket for elevated conveyor installations.
Constructed using C8 structural channel side rails with L3 x 3 x 1/4 structural angle cross bracing, the conveyor is designed for long service life, dependable performance, and efficient operation in demanding industrial environments. Utilizing industry-standard CEMA conveyor components, the system offers excellent durability, serviceability, and replacement part availability.
Available Configuration Options
• Belt Widths: 18", 24", 30", and 36"
• Incline Angles: 12° and 18°
• Custom Lengths Available
• 20° Troughing Idlers Available
• 35° Troughing Idlers Available
• Multiple Drive Configurations Available
• Multiple Discharge Arrangements Available
• Custom Plant Integration Configurations Available
Specifications
Application: Aggregate and Bulk Material Transfer
Construction: C8 Structural Channel Side Rails with L3 x 3 x 1/4 Structural Angle Cross Bracing
Configuration: Upswing Belt Conveyor
Troughing Idlers: Standard CEMA Rollers, 20° or 35° Troughing Configuration
Return Idlers: 4" Diameter Return Rollers
Drive Package: 10 HP Heavy-Duty Conveyor Motor (Voltage Specified by Customer)
Drive Assembly: Gearbox and Torque Arm Assembly Included
Pulley Package: Head and Tail Pulley Package with Take-Ups Included
Support Structure: Two Bent Conveyor Supports Included
Belt Support: Belt Hold-Down Bracket Included
Finish: Industrial Protective Coating
Installation Type: Field-Assembled Structural System
Compatible With
• Concrete Batch Plants
• Ready-Mix Concrete Operations
• Aggregate Storage Systems
• Sand and Gravel Processing Facilities
• Industrial Material Handling Systems
Features
• Heavy-duty C8 channel construction
• L3 x 3 x 1/4 structural angle cross bracing
• Standard CEMA conveyor roller components
• Available with 20° or 35° troughing idler configurations
• Standard 4" diameter return idlers
• Includes 10 HP heavy-duty conveyor motor
• Customer-specified motor voltage available
• Includes drive and gearbox assembly with torque arm
• Includes head and tail pulley package with take-ups
• Includes two bent conveyor supports
• Includes belt hold-down bracket at upswing transition
• Maintains belt contact with troughing idlers during transition
• Designed for elevated material transfer applications
• Custom-engineered conveyor lengths
• Efficient material elevation capabilities
• Optimized material flow characteristics
• Designed for continuous industrial operation
• Simplified field assembly and installation
• Engineered for outdoor industrial environments
• Long service life design
